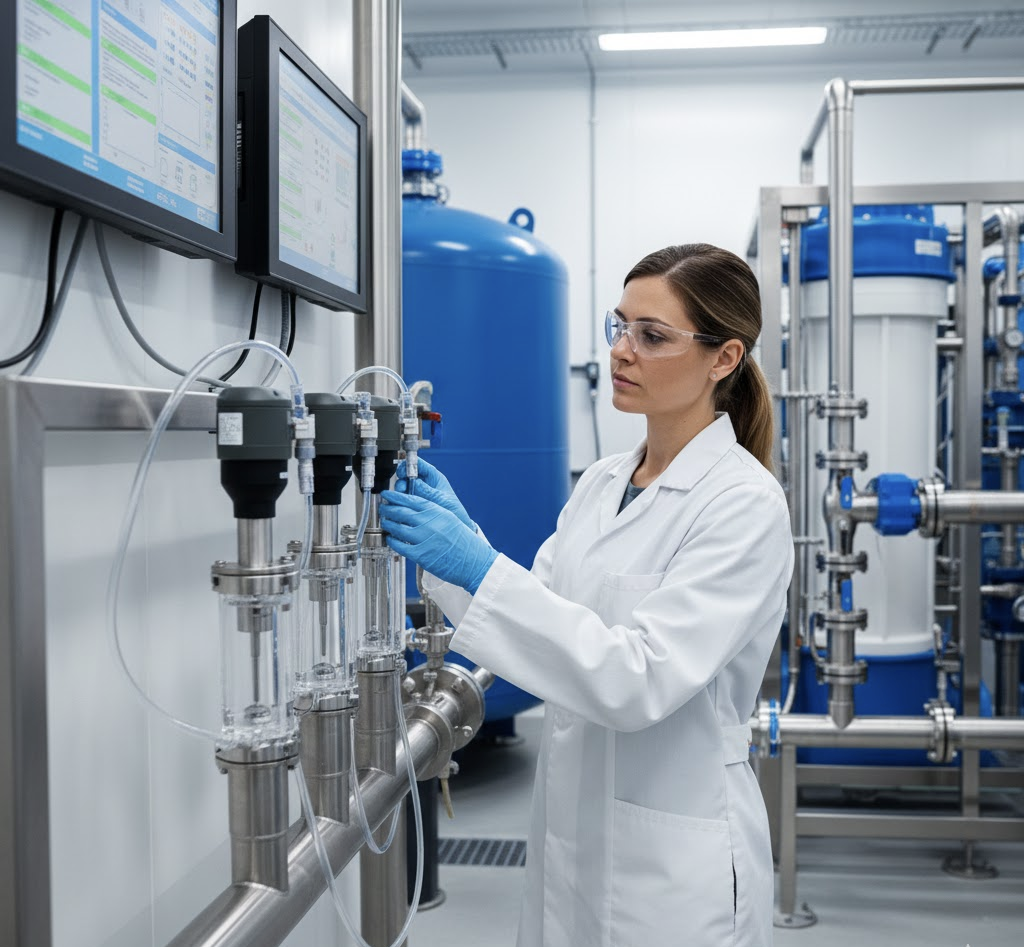

Dissolved Ozone Monitoring in Water Treatment: Sensors, Methods & Best Practices

We’ve worked with ozone systems across aquaculture, municipal water treatment, and food processing - and the one thing every operator eventually learns is that generating ozone is the easy part. Knowing how much dissolved ozone is actually in your water, right now, at the point where it matters, is where things get complicated. And it’s the part that determines whether your ozone system is doing its job or just burning electricity.

Ozone is not like chlorine. You can’t dose it in the morning and check a residual four hours later. Dissolved ozone has a half-life measured in minutes, not hours. It reacts with everything it touches - organics, metals, bacteria, even the pipe walls. By the time you grab a sample and walk it to a bench-top analyzer, the concentration has already changed. This fundamental instability is exactly what makes ozone such a powerful oxidizer, and exactly what makes monitoring it so challenging.

For years, many facilities operated ozone systems essentially blind. They’d set a generator output, assume the water was getting treated, and confirm with periodic microbial plate counts days later. That approach worked until it didn’t - until an organic load spike consumed all the ozone before it reached the contact tank outlet, or until a generator fault went undetected for a week because nobody was measuring the result in the water.

The shift to continuous dissolved ozone monitoring changes everything. When you can see your ozone residual in real time, you stop guessing and start controlling. You dose based on demand, not on schedule. You catch equipment failures in minutes, not days. And you stop overdosing, which matters both economically and because excess ozone creates its own set of problems - bromate formation in drinking water, gill damage in aquaculture, material degradation in piping and membranes.

This guide covers the practical side of dissolved ozone monitoring: how different sensor technologies work, which one fits your application, where to place sensors in your system, and how to tie everything into an automated control loop.

What Is Dissolved Ozone and Why Monitor It?

Ozone (O3) is a triatomic form of oxygen - three oxygen atoms bonded together in an unstable arrangement. That instability is the whole point. Ozone desperately wants to shed that third oxygen atom, and when it does, it oxidizes whatever it reacts with. This makes ozone one of the strongest commercially available oxidizers, roughly 1.5 times more powerful than chlorine and effective against a broader spectrum of pathogens, including chlorine-resistant organisms like Cryptosporidium and Giardia.

When ozone gas is dissolved into water (typically via venturi injection, bubble diffusion, or a pressurized contact vessel), it exists as dissolved molecular ozone. The concentration of this dissolved ozone - measured in mg/L or ppm - determines your treatment effectiveness.

Why Residual Monitoring Matters

There’s a concept in disinfection called CT value: the product of disinfectant Concentration (C) and contact Time (T). For ozone disinfection, you need a specific CT value to achieve a target log reduction of pathogens. For example, achieving 3-log (99.9%) inactivation of Giardia cysts at 15°C requires a CT of approximately 0.97 mg-min/L with ozone.

Here’s the critical point: if you don’t know your dissolved ozone concentration, you can’t calculate your CT. And if you can’t calculate your CT, you don’t actually know whether your disinfection is working. You’re hoping, not monitoring.

Beyond disinfection verification, dissolved ozone monitoring enables:

• Demand-based dosing - Ozone demand varies with organic load, temperature, pH, and flow rate. A fixed ozone dose that works on Monday morning may be completely insufficient on Friday afternoon after a heavy production run. Continuous monitoring lets you adjust dosing to actual conditions.
• Overdose prevention - Excess dissolved ozone damages RO membranes, corrodes stainless steel at concentrations above 0.5 mg/L, creates bromate in bromide-containing water, and is toxic to aquatic organisms. Monitoring prevents this.
• Regulatory compliance - Many jurisdictions require documented CT values for ozone disinfection credit. Continuous monitoring with data logging provides the evidence trail regulators require.
• Equipment fault detection - Ozone generators degrade over time. Dielectric cells lose efficiency, feed gas dryers saturate, and injection systems develop leaks. A dropping dissolved ozone residual, despite constant generator output, catches these problems early.

Measurement Methods Compared

There are three practical approaches to measuring dissolved ozone in water. Each has distinct advantages, and the right choice depends on your accuracy requirements, budget, and application.

Electrochemical (Amperometric) Sensors

This is the workhorse technology for continuous dissolved ozone monitoring. An amperometric sensor uses two or three electrodes separated by an electrolyte solution and covered by a gas-permeable membrane. Dissolved ozone diffuses through the membrane and is reduced at the cathode, generating a current proportional to the ozone concentration.

How it works in practice: The sensor is immersed in the process water (or installed in a flow cell). Ozone molecules pass through the membrane at a rate determined by the ozone partial pressure in the water. At the cathode, O3 + 2H+ + 2e- → O2 + H2O. The resulting current, typically in the nanoamp range, is measured and converted to a concentration reading.

Pros:

• Continuous, real-time measurement
• Relatively affordable ($800-$2,500 for sensor + transmitter)
• Compact - fits in standard flow cells and inline installations
• Response time of 30-90 seconds, adequate for process control
• Low maintenance if membranes and electrolyte are replaced on schedule

Cons:

• Requires periodic membrane and electrolyte replacement (every 1-3 months depending on conditions)
• Cross-sensitivity to chlorine and other oxidizers (relevant in some water treatment plants)
• Accuracy degrades if membrane is fouled by oils or biofilm
• Calibration drift over time - needs periodic verification against a reference method
• Typical accuracy of +/- 10-15% of reading

Best for: Aquaculture systems, food processing wash water, small to mid-size water treatment plants, and any application where continuous monitoring and reasonable accuracy are more important than laboratory-grade precision.

UV Absorption Analyzers

UV absorption is the reference method for dissolved ozone measurement. Ozone absorbs UV light strongly at 254 nm (the same wavelength used for UV disinfection, interestingly). A UV analyzer passes a beam of 254 nm light through a sample cell and measures the absorbance. Using the Beer-Lambert law and ozone’s known molar absorptivity (3,300 M-1cm-1 at 254 nm), the dissolved ozone concentration is calculated directly.

How it works in practice: A sample stream is continuously pumped through a measurement cell. A UV lamp on one side, a detector on the other. Some analyzers use a dual-beam design with a reference path to compensate for lamp aging and window fouling. The measurement is fast (seconds) and highly accurate.

Pros:

• Gold standard accuracy (+/- 1-2% of reading)
• No consumable membranes or electrolyte
• No cross-sensitivity to chlorine (at practical concentrations)
• Long-term stability with minimal calibration drift
• Response time under 10 seconds

Cons:

• Expensive ($5,000-$15,000+ for analyzer)
• Requires clean sample conditioning - turbidity and UV-absorbing organics interfere
• Larger footprint than electrochemical sensors
• Sample flow system adds complexity (pump, tubing, flow regulation)
• UV lamp replacement typically every 1-2 years

Best for: Municipal drinking water treatment, regulatory compliance applications, high-precision dosing control, and any situation where measurement uncertainty must be minimized.

ORP (Oxidation-Reduction Potential) as an Indirect Proxy

ORP doesn’t measure dissolved ozone directly. It measures the overall oxidation-reduction potential of the water in millivolts (mV). Since ozone is a strong oxidizer, adding it to water raises the ORP. This correlation makes ORP a useful proxy for ozone activity, especially for process control.

How it works in practice: A standard ORP sensor (platinum or gold electrode with an Ag/AgCl reference) is placed in the process water. As dissolved ozone concentration increases, ORP increases. The relationship is logarithmic, not linear, and it’s influenced by pH, temperature, and other oxidizers/reducers present in the water.

Pros:

• Very affordable ($200-$800 for sensor + transmitter)
• Extremely robust - no membranes, no electrolyte, no sample conditioning
• Virtually maintenance-free (periodic cleaning and reference electrode replacement)
• Fast response to changes in oxidation conditions
• Works well for setpoint control (maintain ORP at X mV)

Cons:

• Does not give actual dissolved ozone concentration in mg/L
• Affected by every oxidizer and reducer in the water, not just ozone
• The ORP-to-ozone relationship is site-specific and changes with water chemistry
• Cannot be used for regulatory CT calculations
• Logarithmic response means poor sensitivity at high ozone concentrations

Best for: Aquaculture ozone control, swimming pools and spas, process control where trending and setpoint maintenance matter more than absolute concentration, and as a complement to a dedicated ozone sensor.

Comparison Table

Feature	Electrochemical	UV Absorption	ORP (Proxy)
Measures actual O3 concentration	Yes	Yes	No (indirect)
Accuracy	+/- 10-15%	+/- 1-2%	N/A (mV, not mg/L)
Typical cost (sensor + transmitter)	$800-$2,500	$5,000-$15,000+	$200-$800
Response time	30-90 seconds	< 10 seconds	10-30 seconds
Maintenance	Membrane/electrolyte every 1-3 months	Lamp every 1-2 years, window cleaning	Cleaning, reference electrode annually
Cross-sensitivity	Chlorine, H2O2	Turbidity, UV-absorbing organics	All oxidizers/reducers
Regulatory compliance	Limited	Yes	No
Best application	General process monitoring	Municipal water treatment	Process control, aquaculture

In many installations, we recommend using ORP and an electrochemical ozone sensor together. ORP gives you the fast, robust control signal for your dosing system. The electrochemical sensor gives you the actual concentration for logging, compliance, and verifying that ORP-based control is achieving the target residual.

Dissolved Ozone Monitoring in Aquaculture

Ozone use in recirculating aquaculture systems (RAS) has grown significantly over the past decade, and for good reason. Ozone handles several problems that are difficult or impossible to solve with other treatments in a closed-loop system: it oxidizes dissolved organic compounds that turn water yellow, it breaks down nitrite (which is toxic to fish), it kills pathogens without leaving persistent chemical residuals, and it improves water clarity by micro-flocculating fine suspended particles.

But ozone in aquaculture is a double-edged sword. The same oxidizing power that destroys bacteria and organics will also destroy fish gills, skin, and blood cells if residual ozone reaches the culture tanks. This makes monitoring not just important but absolutely safety-critical.

Safe Ozone Levels by Application Point

In a well-designed aquaculture ozone system, the ozone contact happens in a dedicated reaction chamber, sump, or protein skimmer - never in the fish tank itself. Water passes through the ozone contact zone, the ozone reacts with organics and pathogens, and the residual ozone is removed before the water returns to the fish.

In the ozone contact chamber: Dissolved ozone levels of 0.1-0.4 mg/L are typical for effective treatment. Higher concentrations (up to 1.0 mg/L) may be used for heavy organic loads or specific pathogen challenges, but this requires careful control.

After the contact chamber (before fish tanks): Dissolved ozone must be below 0.01 mg/L - essentially zero. Most fish species show stress responses at 0.01 mg/L and gill damage at concentrations above 0.05 mg/L. Sensitive species like salmonids may react at even lower levels.

In the fish tank itself: ORP should stay below 350 mV. Some operators set alarms at 300 mV to provide a safety margin. If ORP in the fish tank starts climbing above 350 mV, it’s a sign that residual ozone is getting through your removal step and something needs immediate attention.

Where to Place Sensors in the RAS Loop

We recommend a minimum of two monitoring points for any aquaculture ozone system, and three for production-scale operations:

1. In or immediately after the ozone contact chamber - This is where you want an O3-100 dissolved ozone probe to measure the actual treatment concentration. This reading tells you whether your ozone generator is producing enough ozone to meet the water’s demand. If your target is 0.2 mg/L residual after 2 minutes of contact time and you’re only reading 0.05 mg/L, your generator output is too low or your organic load has spiked.

2. After the ozone removal step (UV, carbon, or degassing) - This is your safety checkpoint. An ORP-100 probe here verifies that residual ozone has been adequately removed before water returns to the fish. ORP should drop below 350 mV, ideally below 300 mV. If you want belt-and-suspenders safety, a second dissolved ozone sensor here confirms zero residual.

3. In the fish tank or return line to the fish tank - An ORP-10 probe here serves as the last line of defense. This is the alarm sensor. If ORP exceeds your safety threshold, your control system should immediately shut off the ozone generator. No exceptions, no delays, no manual intervention required.

Using ORP for Ozone Dosing Control

In our experience, ORP-based control is the most practical approach for aquaculture ozone management. Here’s why: ozone demand in a RAS changes constantly. Feed times create organic load spikes. Biofilter activity varies with temperature and ammonia load. Flow rates change with filter backwash cycles. A fixed ozone dose that’s right at 8 AM will be wrong by noon.

ORP-based control adapts automatically. You set an ORP setpoint for the contact chamber - typically 350-450 mV depending on your water chemistry and treatment goals - and the controller modulates ozone generator output to maintain that setpoint. When organic load increases (ORP drops), the generator ramps up. When demand decreases, it backs off.

The practical limitation of ORP control is that it doesn’t tell you the actual dissolved ozone concentration. Two systems with very different water chemistries might achieve 0.2 mg/L dissolved ozone at completely different ORP values. This is why we recommend commissioning with a dissolved ozone sensor to establish what ORP setpoint corresponds to your target ozone residual in your specific water. Once that relationship is established, ORP can handle day-to-day control.

For a deeper dive into RAS monitoring, including how ozone integrates with other water quality parameters, see our RAS water quality monitoring guide.

Dissolved Ozone in Water Treatment

Municipal and industrial water treatment represents the largest application for dissolved ozone monitoring, and also the most demanding in terms of accuracy and documentation.

Municipal Drinking Water

In drinking water treatment, ozone is used for primary disinfection (pathogen inactivation), taste and odor control, color removal, and as a pre-oxidant to improve downstream filtration and reduce chlorine demand.

The U.S. EPA’s Surface Water Treatment Rule and its amendments specify CT requirements for ozone disinfection credit. To receive disinfection credit, utilities must demonstrate that specific CT values are maintained continuously. This requires:

• Continuous dissolved ozone monitoring at the outlet of each contact chamber
• Measurement at multiple points within the contact chamber for T10 (time for 10% of water to pass through) calculations
• Data logging at intervals no greater than 15 minutes (many utilities log every 1-5 minutes)
• Accuracy traceable to a reference standard

For these applications, UV absorption analyzers are the standard choice. The investment is justified by regulatory requirements and the scale of treatment - a municipal plant treating millions of gallons per day cannot afford measurement uncertainty.

Typical dissolved ozone residuals in municipal treatment range from 0.2-0.5 mg/L at the contact chamber outlet, with contact times of 5-15 minutes depending on temperature and target pathogens. Operators must also monitor for bromate formation if source water contains bromide, since ozone converts bromide to bromate (a regulated contaminant with an MCL of 10 ug/L in the US).

Industrial Applications

Industrial ozone applications are enormously varied: semiconductor wash water, cooling tower treatment, bottled water disinfection, pharmaceutical water systems, and wastewater treatment for discharge permit compliance. Each has different monitoring requirements, but common themes emerge:

• Semiconductor manufacturing requires extremely precise ozone control (often 1-5 mg/L) for wafer cleaning. UV analyzers are standard.
• Bottled water and beverage plants typically use ozone at 0.2-0.4 mg/L for disinfection before filling. Electrochemical sensors are common, with periodic UV verification.
• Cooling tower treatment uses ozone as a biocide alternative to chemical treatment. ORP-based control at 600-700 mV is often sufficient since the goal is biofilm prevention, not specific CT compliance.
• Wastewater treatment for color, odor, or micropollutant removal uses ozone at higher doses (2-10 mg/L or more). Monitoring focuses on the ozone transfer efficiency and residual at the reactor outlet.

Sensor Placement and Installation Best Practices

Where you install a dissolved ozone sensor matters as much as which sensor you buy. Ozone’s short half-life means that a sensor placed 30 seconds of flow time away from your point of interest might read a significantly different concentration than what actually exists at that point.

General Placement Principles

Minimize sample transport distance. Every meter of pipe between the measurement point and the sensor introduces delay and ozone decay. If you’re using a sample line to feed a flow cell, keep it under 3 meters and use ozone-resistant tubing (PTFE, PVDF, or 316L stainless steel). PVC, copper, and rubber will destroy ozone on contact.

Install in a flow cell whenever possible. Immersion-style installations work, but flow cells provide consistent flow past the sensor membrane, which improves response time and measurement stability. Target a flow rate of 0.5-2.0 L/min through the cell for electrochemical sensors. Too little flow starves the sensor of ozone; too much creates turbulence that can damage the membrane.

Avoid dead zones and stagnant pockets. Ozone residual in a stagnant pocket decays to zero quickly. Always install sensors in areas with active, representative flow.

Account for temperature effects. Both ozone solubility and sensor response are temperature-dependent. Most modern transmitters compensate automatically, but the temperature sensor (usually built into the ozone probe or installed nearby) must be in the same water as the ozone measurement. Don’t rely on a temperature reading from a different part of the system.

Installation for Specific Applications

In ozone contact chambers: Install the sensor at the outlet of the contact chamber, ideally in a sample line tapped from the main flow. Avoid installing directly in the contact chamber where ozone concentrations may be highly variable (bubble curtains create concentration gradients). The outlet, after mixing, gives you a representative reading.

In aquaculture systems: Install dissolved ozone sensors in the ozone reaction chamber or immediately downstream. Install ORP sensors in flow-through sections of the return line and in the culture tank itself. Ensure ORP sensors in fish tanks are positioned where they’ll see representative water, not in a dead corner behind a standpipe.

In flow cells: Orient the flow cell vertically with flow going upward. This prevents air bubbles from accumulating on the sensor membrane, which would give false low readings. Include a ball valve upstream for flow regulation and a sample drain downstream.

Maintenance Schedule

Consistent maintenance is the difference between a sensor that gives you reliable data and one that gives you false confidence. Here’s what we recommend:

• Weekly: Visual inspection of sensor membrane and flow cell. Clean flow cell if biofilm or deposits are visible. Check that flow rate through the cell is in range.
• Monthly: Clean sensor membrane with a soft cloth and warm water. Replace membrane and electrolyte if using an amperometric sensor with a replaceable membrane cap.
• Quarterly: Verify sensor reading against a reference method (DPD colorimetric test kit for quick checks, or send a sample to a lab). Adjust calibration if deviation exceeds +/- 10%.
• Annually: Replace reference electrode in ORP sensors. Replace UV lamp in UV analyzers. Recalibrate or factory-service electrochemical sensors.

IoT Integration and Automated Control

A dissolved ozone sensor on its own tells you what’s happening. A dissolved ozone sensor connected to a controller tells you what’s happening and does something about it. This is where the real value of continuous monitoring is realized.

From Sensor to Controller

Modern dissolved ozone sensors and ORP probes output standard signals - 4-20 mA analog, RS-485 Modbus, or SDI-12 - that connect directly to process controllers. The Omni Exodus Controller accepts all of these input types and supports the logic needed for ozone process control.

A basic ozone control loop works like this:

1. The sensor reads dissolved ozone or ORP continuously.
2. The controller compares the reading to a setpoint (e.g., ORP = 400 mV, or dissolved O3 = 0.3 mg/L).
3. If the reading is below setpoint, the controller increases ozone generator output (via 4-20 mA, relay, or Modbus command to the generator).
4. If the reading exceeds setpoint, the controller reduces generator output.
5. A high-high alarm threshold triggers an emergency generator shutdown (e.g., ORP > 500 mV or dissolved O3 > 0.8 mg/L in aquaculture).

PID (proportional-integral-derivative) control is preferred over simple on/off control for ozone dosing. Ozone demand fluctuates continuously, and on/off control creates concentration swings that stress biological systems and make CT calculations unreliable. PID control maintains a stable residual by continuously adjusting the ozone dose.

Data Logging and Trending

Beyond real-time control, logging dissolved ozone and ORP data over time provides insights that spot checks never will:

• Diurnal patterns - In aquaculture, ozone demand typically peaks after feeding and drops overnight. Seeing this pattern confirms your system is responding to real organic load changes. If the pattern disappears or flattens, something has changed.
• Long-term trends - A gradually increasing ORP setpoint needed to maintain the same dissolved ozone residual suggests the sensor is drifting or the generator is losing efficiency. Either way, maintenance is needed.
• Correlation with events - By logging ozone data alongside other parameters (flow, temperature, turbidity, pH), you can trace cause and effect. A sudden ozone residual drop that correlates with a turbidity spike tells you an organic load event consumed your ozone. A drop with no corresponding change in other parameters points to generator or injection system issues.
• Compliance documentation - For regulated facilities, timestamped, continuous data logs prove your system maintained required CT values. This is far more convincing to regulators than spot-check data sheets.

Alert Configuration

We configure alerts in tiers:

• Low alarm - Dissolved ozone below process minimum (e.g., < 0.1 mg/L in contact chamber). Notification to operator. The system is still treating but performance is degraded.
• Low-low alarm - Dissolved ozone at zero or ORP dropping below background levels. Treatment has failed. Urgent notification. In drinking water, this may require switching to backup disinfection.
• High alarm - Dissolved ozone above process target (e.g., > 0.5 mg/L). Generator output should be reducing. Check that control loop is functioning.
• High-high alarm - Safety threshold exceeded (critical in aquaculture). Immediate generator shutdown. In aquaculture, this is the “fish will die” alarm and must be hardwired as a failsafe, not dependent on software alone.

Network Architecture

For multi-point ozone monitoring, we typically deploy sensors connected to a local controller at each monitoring point, with data aggregated to a central dashboard via Ethernet, cellular, or LoRaWAN. This architecture means each control loop operates independently - if the network goes down, the local controller still maintains its setpoint and still triggers safety shutdowns. The network adds visibility and data logging, but it’s not in the critical safety path.

Conclusion

Dissolved ozone monitoring is fundamentally about closing the loop between ozone generation and ozone effect. Without measurement, you’re guessing at your treatment efficacy, your safety margins, and your operating costs.

For most applications, the decision framework is straightforward:

• If you need regulatory-grade accuracy and compliance documentation, invest in a UV absorption analyzer.
• If you need reliable continuous monitoring for process control at a reasonable cost, an electrochemical dissolved ozone sensor is the right choice.
• If you’re running an aquaculture ozone system and need practical, robust control, ORP sensors at multiple points in the loop - combined with a dissolved ozone sensor at the contact chamber - give you both safety and process visibility.
• In almost every case, pairing a direct ozone measurement with ORP trending gives you more insight than either technology alone.

The technology exists today to monitor dissolved ozone continuously, log the data automatically, and control dosing in real time. The sensors are affordable, the controllers are capable, and the integration is straightforward. The only remaining question is whether you want to know what your ozone system is actually doing, or whether you’re comfortable assuming.

We’d suggest knowing.
